JYZ250H HIGH PRESSURE PRECISION PREFORMER
Keywords：
Chemicals
Classification
Preformer
Hot-line：
Details
PRODUCT INTRODUCTION:
Precision Preformer is a type of rubber blank manufacturing equipment with high efficiency and high accuracy.

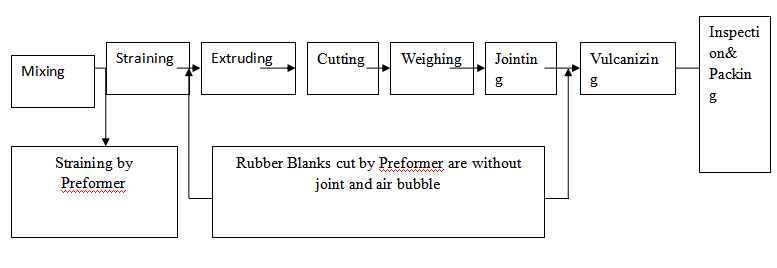

It can process a wide range of all rubber material including silicone, Natural rubber, NBR and FKM compound etc. It is able to extrude rubber blanks of circular, rectangle, strip and odd shapes. It is especially suitable to produce sealing, oil seal, tire valves, bottle stoppers, tennis balls, shoe soles and friction lining, etc. It integrates a variety of different functions such as vacuuming, filtrating, extruding, cutting, weighing, counting, etc.
JYZ Precision Preformer (Auto Series)
Features:
●PLC control and touch screen operator interface, convenient to input data, password protection.
●Emergency standby keys on touchscreen for real button switches.
●Weigh scale close loop feedback system for adjusting cutter speed automatically to control blank weight.
●RS232 connection to weigh scale.
●1000 products technics database available to connect.
●Graphic and text display for failure point and cause.
●Reliable safety performance.
●Interlocks designed for head closing, cutter rotating, and ram moving forward & retract.
●Extended center for easier cleaning.
●Reversing stainless steel conveyer to separate the incorrect weight blanks at initial phase.
Optional:
●Cutter driven by synchronous belt, lower noise, cutter speed up to 400 RMP.
●Pulse cut, serve motor control, Continuous and non-continuous cutting, cutter speed at 0.5- 400 RPM.
●Ram position displayed by %.
●Rear load.
●Telescope conveyor.
●Anti-sticking conveying belt.
●Customers can provide RS232 connection to weigh scale for use with Preformer.
Technical Parameter：
| Items | Unit | JYZ150 | JYZ200 | JYZ250 | JYZ200H | JYZ250H |
| Barrel inner diameter | mm | 150 | 200 | 250 | 200 | 250 |
| Total power | kW | 16 | 16 | 28 | 25 | 25 |
| Max. extruding pressure | MPa | 36.8 | 20.7 | 20.7 | 40 | 25 |
| Max. barrel temperature | °C | 95 | 95 | 95 | 95 | 95 |
| Max. die diameter | mm | 125 | 125 | 190 | 125 | 190 |
| Blank weight range | g | 0.3～100 | 0.3～200 | 0.3～2000 | 0.3～200 | 0.3～2000 |
| Blank weight accuracy | % | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Single load capacity | kg | 13~15 | 20~30 | 60~70 | 20~30 | 60~70 |
| Cutter speed | r/min | 35～300 | 35～300 | 23～300 | 35～300 | 23～300 |
| External dimension (L×W×H) | mm | 4080×1220×1640 | 4080×1250×1640 | 5100×1250×1640 | 5000×1280×1850 | 5100×1250×1640 |
| Weight | kg | 2500 | 2500 | 3600 | 4600 | 5000 |
Preformer controlled by Convertor- continuous cutting
Preformer controlled by Servo - stop N cut
